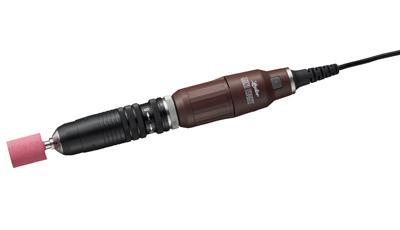

Leutor Mini Eight Heavy Unit
|
| Model |
No-load
Speed
(min-1) |
Input
Voltage
(DCV) |
No-load
Current
(DCA) |
Max-load
Current
(A) |
Max.
Torque
(N･cm) |
Max.
Input
(W) |
attached
Chuck
(mm) |
Weight
(g) |
LEM-30HA
(HH72+M30A)
|
1,000~30,000 |
1~30 |
0.35 |
4 |
7.4 |
80 |
φ 2.34,φ3 |
340 |
LEM-15HA
(HH72+M15A) |
1,000~15,000 |
2~30 |
0.14 |
4 |
8.8 |
80 |
φ 2.34, φ3 |
340 |
|
| Model |
size (mm) |
| L |
L1 |
L2 |
D |
D1 |
| LEM-30HA |
180.8 |
91 |
89.8 |
31.6 |
21 |
| LEM-15HA |
180.8 |
91 |
89.8 |
31.6 |
21 |
|
 |
| ●used analog conversion adapter with LEC-800（old model）. |
 |
＋ |
 |
＋ |
 |
|
Motor Unit
A-type |
|
conversion adapter
EP-53 |
|
power unit (old model)
LEC-800 |
|
