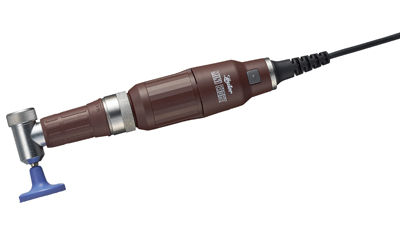

Leutor Mini Eight Angle Unit 90° Small size and light weight
|
| Model |
No-load
Speed
(min-1) |
Input
Voltage
(DCV) |
No-load
Current
(DCA) |
Max-load
Current
(A) |
Max.
Torque
(N･cm) |
Max.
Input
(W) |
attached
Chuck
(mm) |
Weight
(g) |
LEM-15GSA
(HG9S+M15A)
|
950~14,200 |
2~30 |
0.14 |
4 |
9.3 |
80 |
φ 2.34,φ3 |
290 |
LEM-08GSA
(HG9S+M08A) |
950~7,500 |
3.5~30 |
0.13 |
2.8 |
9.9 |
80 |
φ 2.34, φ3 |
290 |
|
| Model |
size (mm) |
| L |
L1 |
L2 |
| LEM-15GSA |
163.8 |
74 |
89.8 |
| LEM-08GSA |
163.8 |
74 |
89.8 |
|
 |
| ●used analog conversion adapter with LEC-800（old model）. |
 |
＋ |
 |
＋ |
 |
|
Motor Unit
A-type |
|
conversion adapter
EP-53 |
|
power unit (old model)
LEC-800 |
|
| Leutor tool cataloge → |
